Limp Mode Lockdown on a 2014 Mercedes Sprinter 2500 DEF System Repair

Nothing stops a workday faster than a van that will not go over five miles per hour. That was the reality for this 2014 Mercedes Sprinter 2500 with the 3.0 V6 diesel engine when it went into limiter mode in Carlsbad, CA. The dashboard displayed a DEF system fault, and the van immediately lost most of its power.

Diagnosis

Mercedes Sprinter vans use a DEF system also known as the diesel exhaust fluid system to control emissions by reducing nitrogen oxide in the exhaust stream. When the system detects a failure, the engine computer forces the van into limp mode to protect emissions compliance.

In this case, testing revealed a failed DEF heater and sensor module that was no longer regulating fluid temperature or flow. The DEF pump also failed to generate the proper pressure, which confirmed a system-wide fault rather than a simple sensor issue.

The Repair

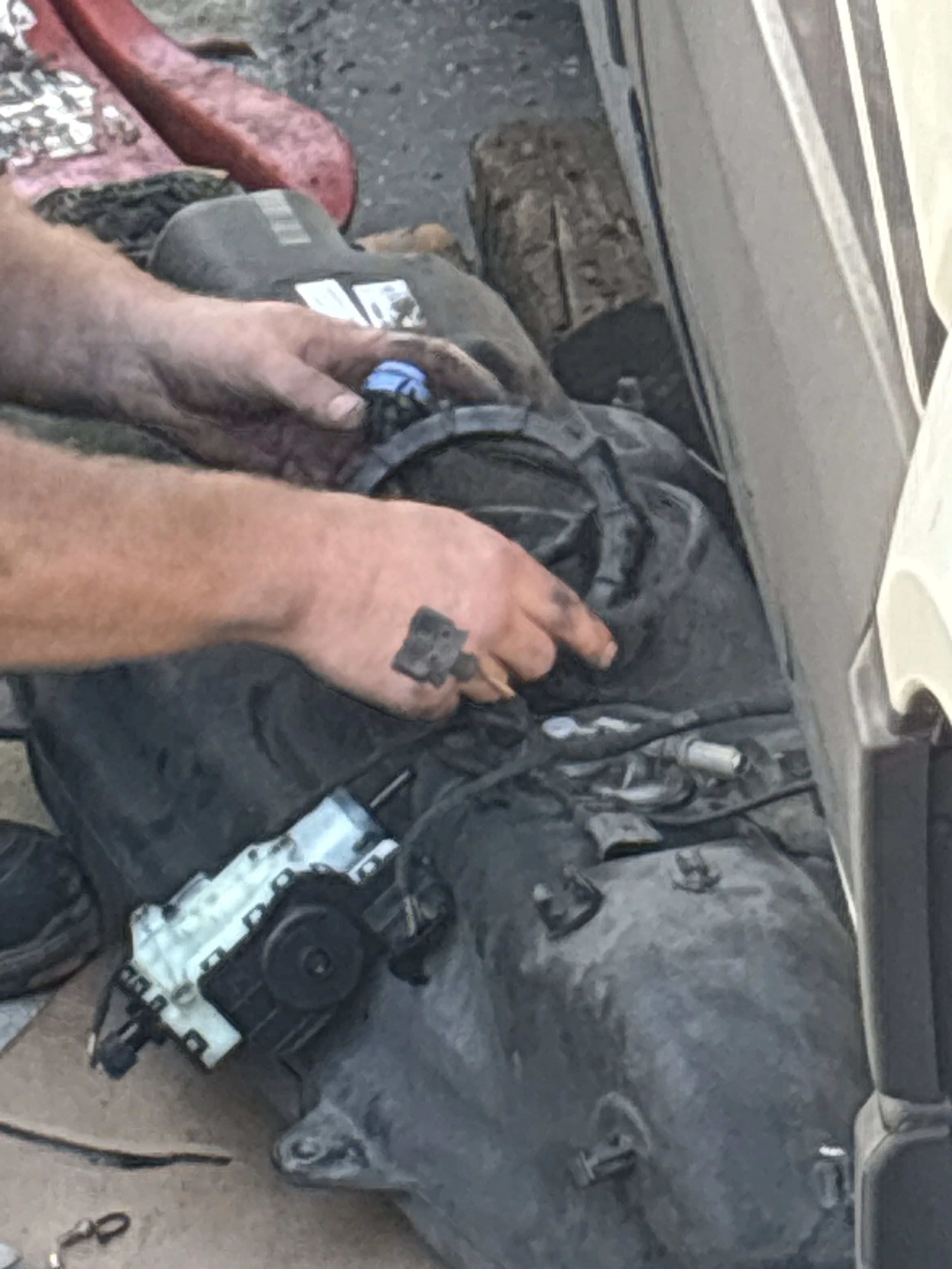

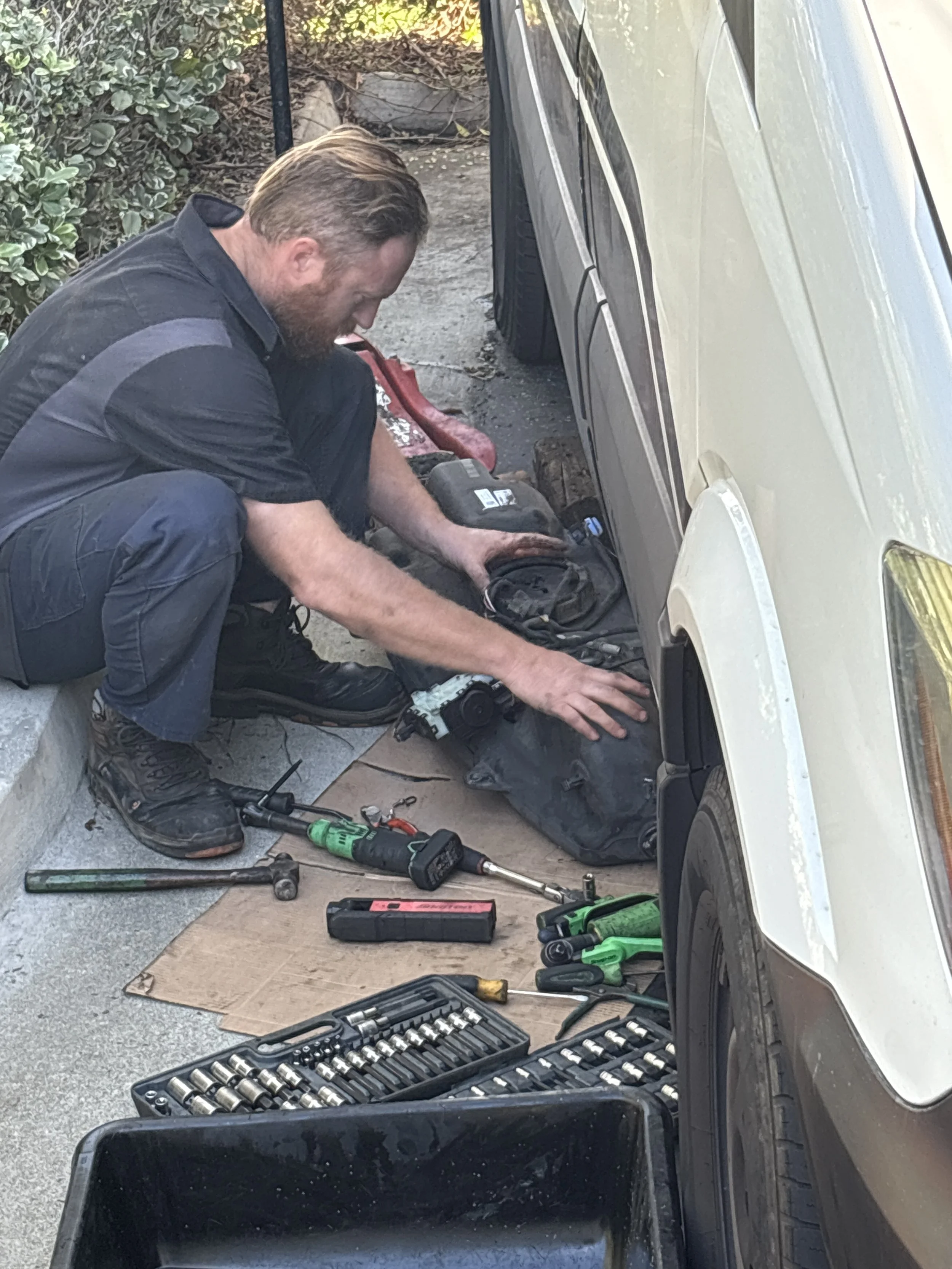

To restore full operation, the DEF heater and sensor assembly was replaced along with the DEF pump. The entire system was then programmed and reset so the engine computer would recognize the new components. Fresh DEF fluid was added, and live data confirmed proper heating, pressure, and injection. Once completed, the Sprinter exited limp mode and returned to full driving speed.

Why This Happens

On modern diesel vehicles, the DEF system is extremely sensitive to temperature, contamination, and electrical failure. A single bad sensor or heater can disable the entire system. Letting these faults sit can lead to extended downtime and costly repairs. Regular inspections and early repair of DEF warning lights prevent breakdowns that take work vans off the road without warning.
